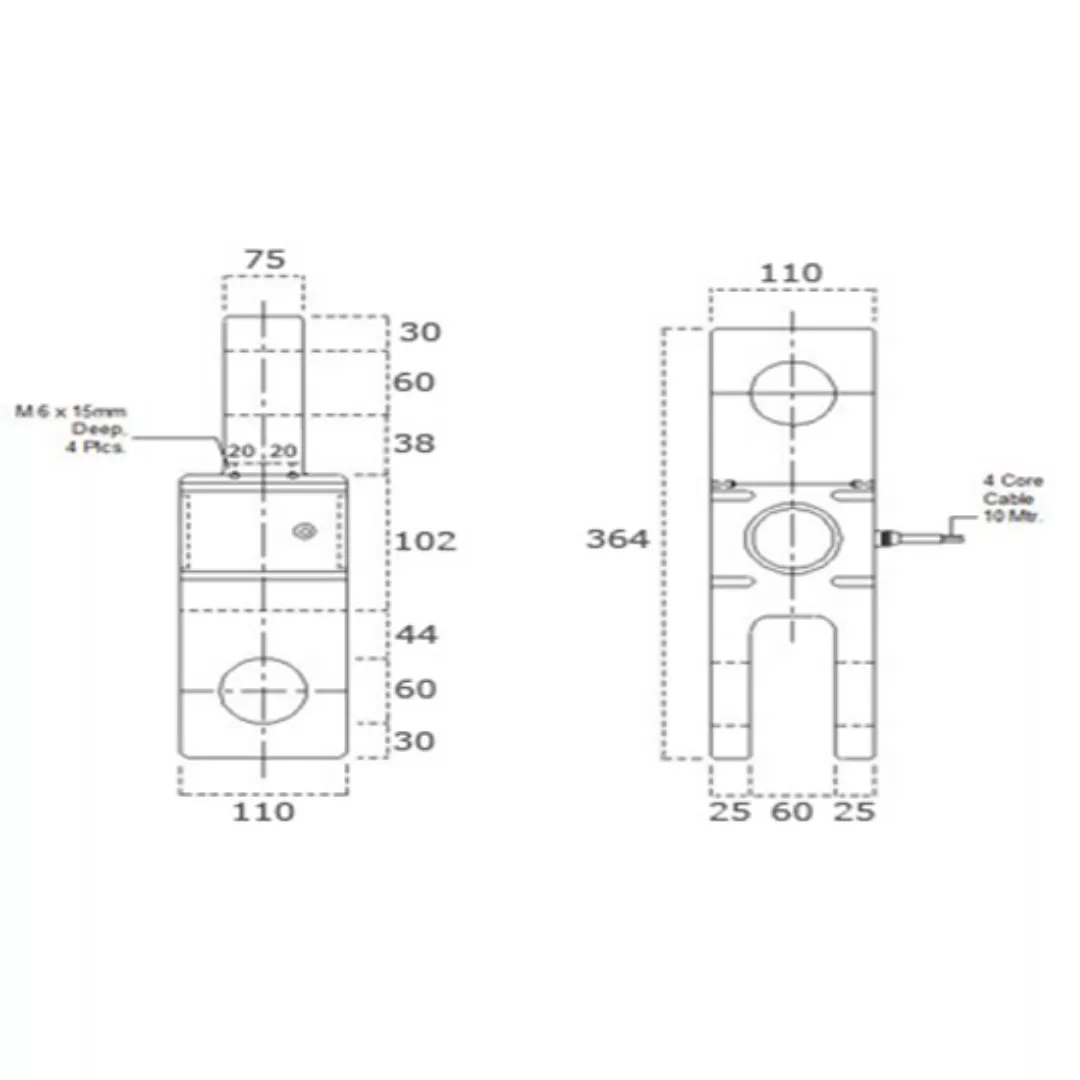

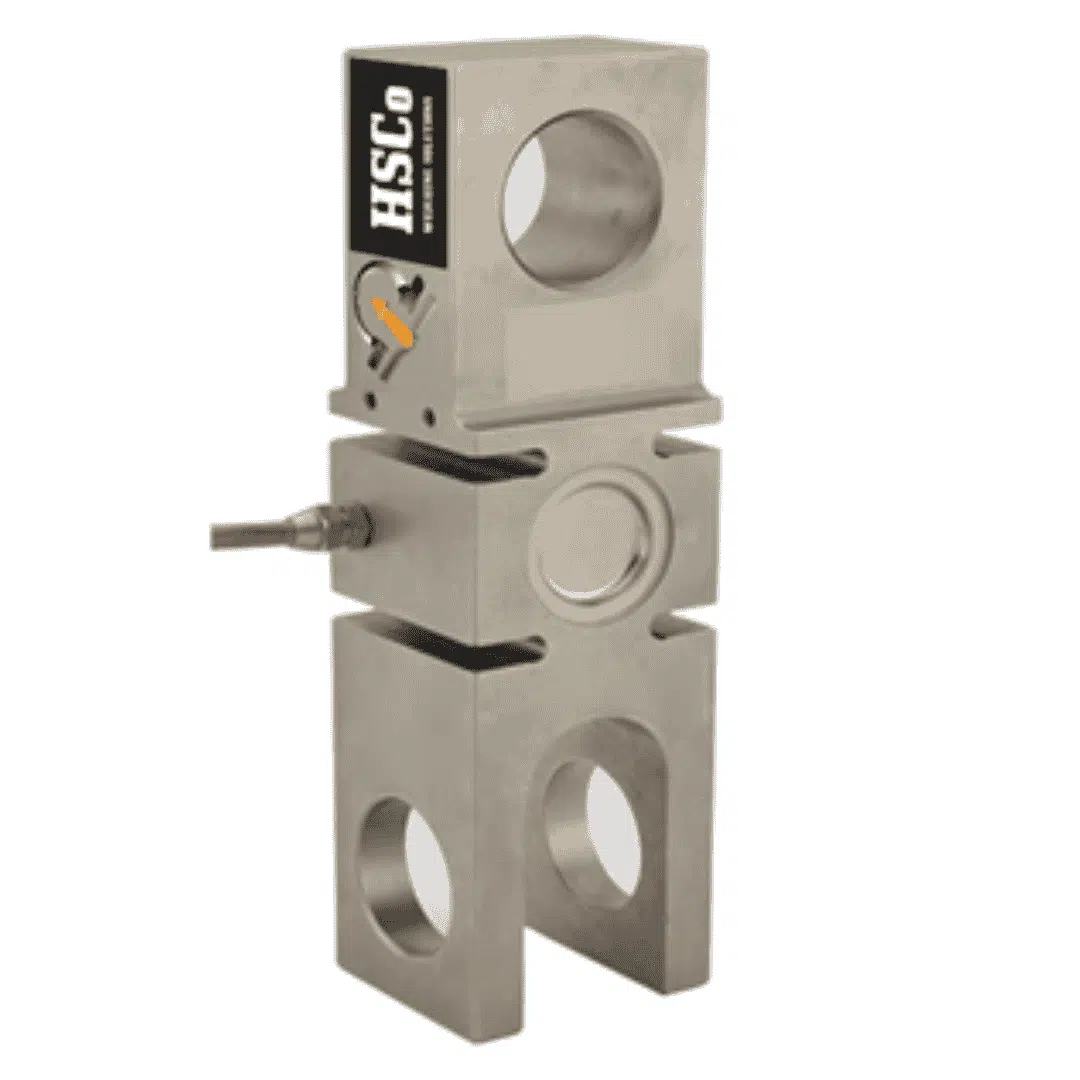

CRANE LOAD CELL

AS PER REQUEST, PLEASE CALL US HERE

STANDARD CAPACITY (Kg.): 20, 30

STANDARD SPECIFICATION

  • Nominal Output 1.0 mV/V
  • Excitation Voltage 10 VDC – Maximum 15 VDC
  • Safe Load 150% of Rated Capacity
  • Ultimate Load 200% of Rated Capacity
  • Non Linearity <±0.05% of FSO (Full Scale Output)
  • Creep (30 minutes) <±0.05% of FSO
  • Zero Balance <±1% of FSO
  • Input Resistance 775 ± 15 ohms
  • Output Resistance 700 ± 10 ohms
  • Material Electroless nickel plated tool steel
  • Insulation Resistance Above 5000 Mega ohms
  • Environmental Protection Class IP65
  • Temp Compensation 0oC to +60oC
